Jenkins安装与基础配置

Jenkins 安装与基础配置​

配置java环境​

Jdk下载：https://www.oracle.com/java/technologies/downloads/

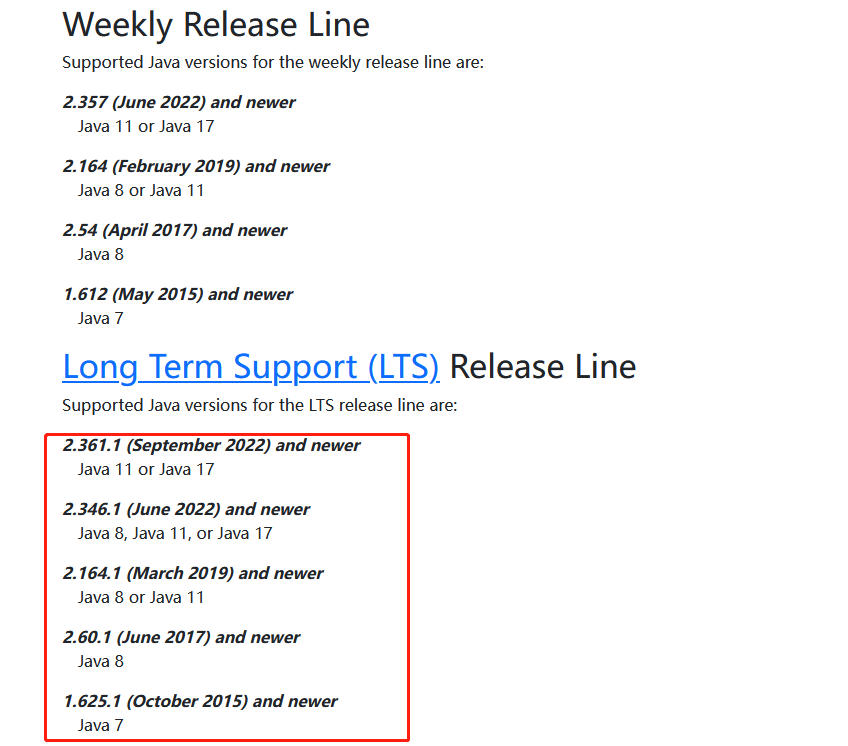

版本jdk要求:

image-20230516165044384

tar -xf

#创建软连接
root@etcd02[11:05:51]/apps/Jenkins #:ln -sv /apps/jdk1.8.0_371/ /usr/local/jdk
'/usr/local/jdk' -> '/apps/Jenkins/jdk1.8.0_371/'

root@etcd02[11:07:53]/apps/Jenkins #:ln -sv /apps/jdk1.8.0_371/bin/java /usr/bin/java
'/usr/bin/java' -> '/apps/Jenkins/jdk1.8.0_371/bin/java'
root@server:/apps# ln -sv /apps/jdk-17.0.6/ /usr/local/jdk
'/usr/local/jdk' -> '/apps/jdk-17.0.6/'
root@server:/apps# ln -sv /apps/jdk-17.0.6/bin/java  /usr/bin/java
'/usr/bin/java' -> '/apps/jdk-17.0.6/bin/java'


apt-get install fontconfig

配置环境变量​

vim /etc/profile.d/jdk-bin-path.sh
export JAVA_HOME=/usr/local/jdk
export PATH=$JAVA_HOME/bin:$JAVA_HOME/jre/bin:$PATH
export CLASSPATH=.$CLASSPATH:$JAVA_HOME/lib:$JAVA_HOME/jre/lib:$JAVA_HOME/lib/tools.jar

source /etc/profile.d/jdk-bin-path.sh
root@etcd02[13:55:57]/etc/profile.d #:java -version
java version "1.8.0_371"
Java(TM) SE Runtime Environment (build 1.8.0_371-b11)
Java HotSpot(TM) 64-Bit Server VM (build 25.371-b11, mixed mode)

安装Jenkins​

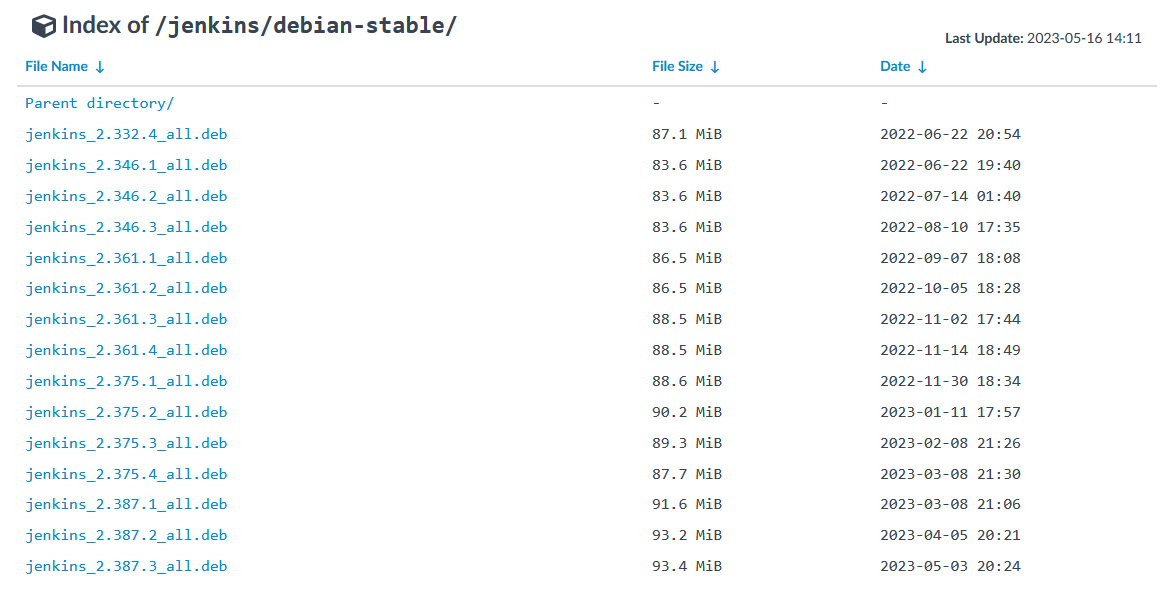

Ubuntu 安装包下载：

https://mirrors.tuna.tsinghua.edu.cn/jenkins/debian-stable/

image-20230516144314123

安装安装依赖​

apt install net-tools
dpkg -i jenkins_2.361.4_all.deb

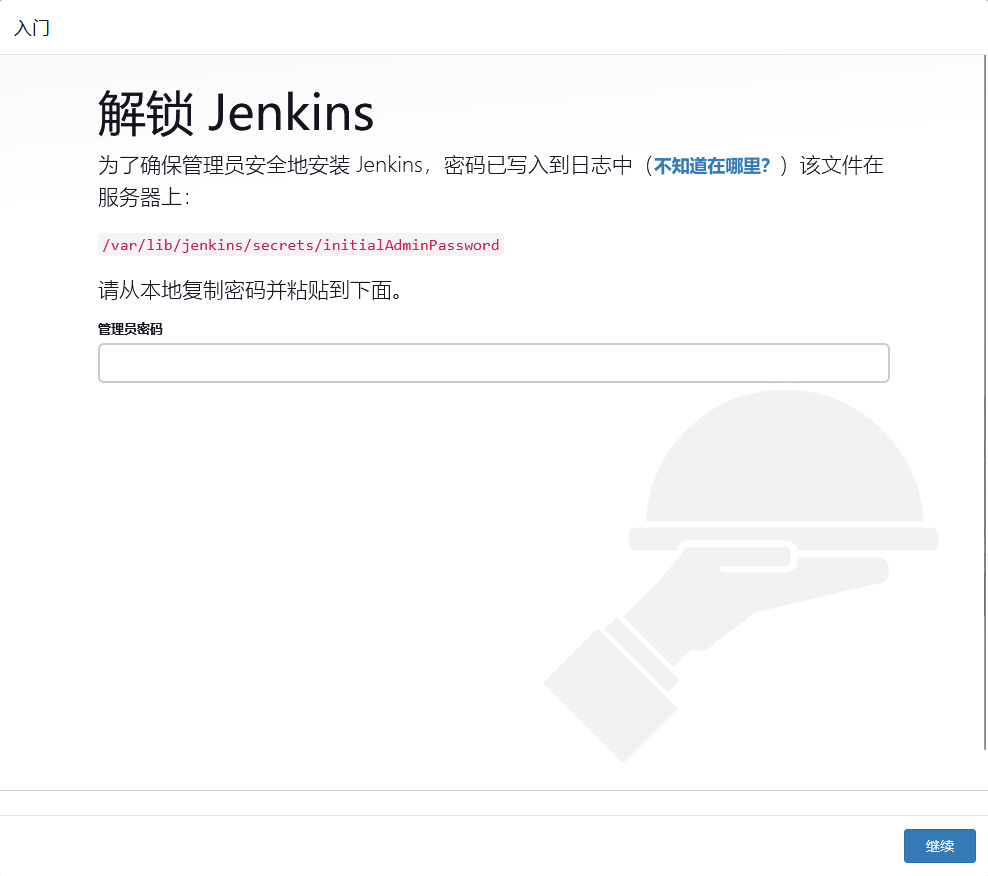

image-20230516180049815

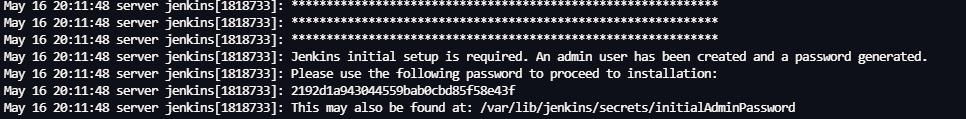

获取密码​

image-20230516202608708

设置清华源​

该url是国内的清华大学的镜像地址（建议使用清华大学的镜像服务器，修改后刷新页面即可.

https://mirrors.tuna.tsinghua.edu.cn/jenkins/updates/update-center.json

find / -name *.UpdateCenter.xml
/var/lib/jenkins/hudson.model.UpdateCenter.xml


vim /var/lib/jenkins/hudson.model.UpdateCenter.xml
<?xml version='1.1' encoding='UTF-8'?>
<sites>
  <site>
    <id>default</id>
    <url>https://mirrors.tuna.tsinghua.edu.cn/jenkins/updates/update-center.json</url>
  </site>
</sites>

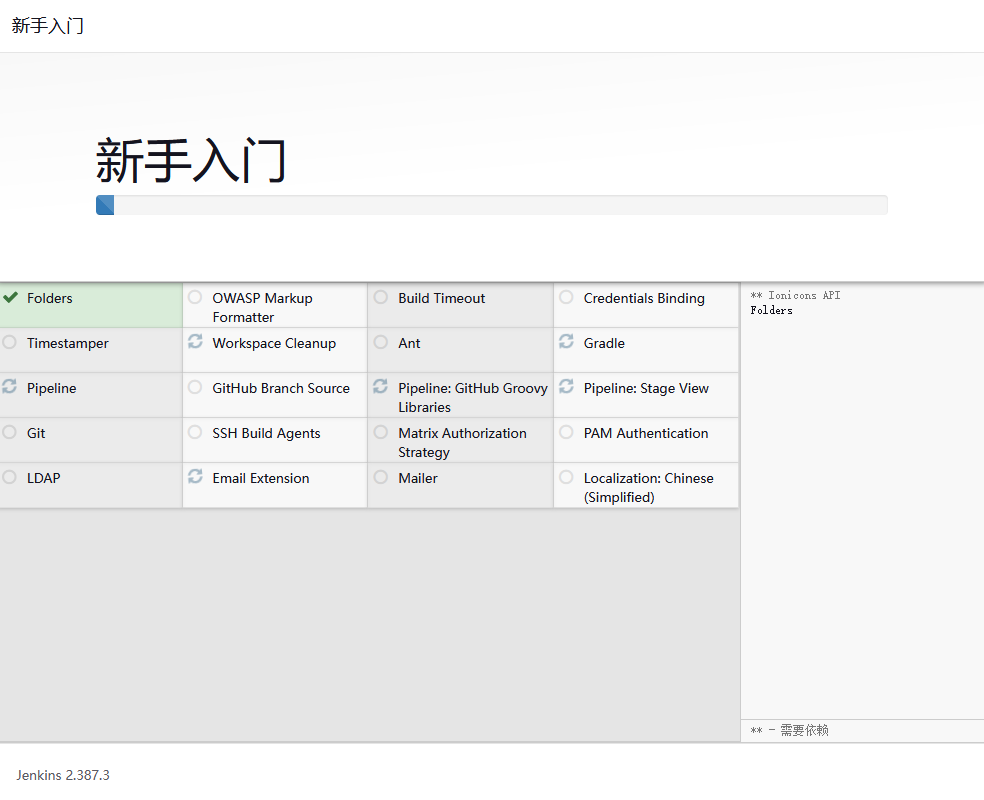

下载插件​

image-20230516203952363
